Description
Specifications:
| Product Name | Elite 301 |
| Product Number | E301-KGNN-S00 |
| Exterior Color | Black |
| Materials | |
| Exterior | Steel, Plastic |
| Left Side Panel | Tempered Glass |
| Dimensions (L x W x H) | |
| Incl. Protrusions | 390 x 203.5 x 430mm |
| Excl. Protrusions | 377 x 203.5 x 410mm |
| Volume (Liters Incl. Protrusions) | 34.13 L |
| Motherboard Support | ITX / Micro ATX |
| Expansion Slots | 4 |
| Drive Bays | |
| 5.25“ ODD | N/A |
| 3.5” HDD | 1 |
| 2.5” SSD | 1 (Max.2) |
| I/O Panel | |
| USB Ports | 1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C |
| Audio In / Out | 1x 3.5mm Combo |
| Pre-installed Fan(s) | |
| Front | 3x 120mm CF120 ARGB (1200 rpm) |
| Rear | N/A |
| Fan Support | |
| Front | 3x 120mm |
| Top | 2x 120mm / 2x 140mm |
| Rear | 1x 120mm |
| Radiator Support | |
| Front | 120/240mm |
| Top | 120/140/240/280mm |
| Rear | 120mm |
| Clearances | |
| CPU Cooler | 163.5mm |
| Power Supply | 160mm |
| Graphics Card | 365mm(w/o front fans & radiator) |
| Cable Routing | |
| Behind MB Tray | 18.5mm |
| Dust Filters | Top/Bottom/Front |
| Power Supply Support | ATX |
| Net weight (KG) | 5.42 |
| Gross weight (KG) | 6.33 |
| Carton dimension (L x W x H) mm | 477 x 266 x 446 |
| Warranty | 2 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Features:

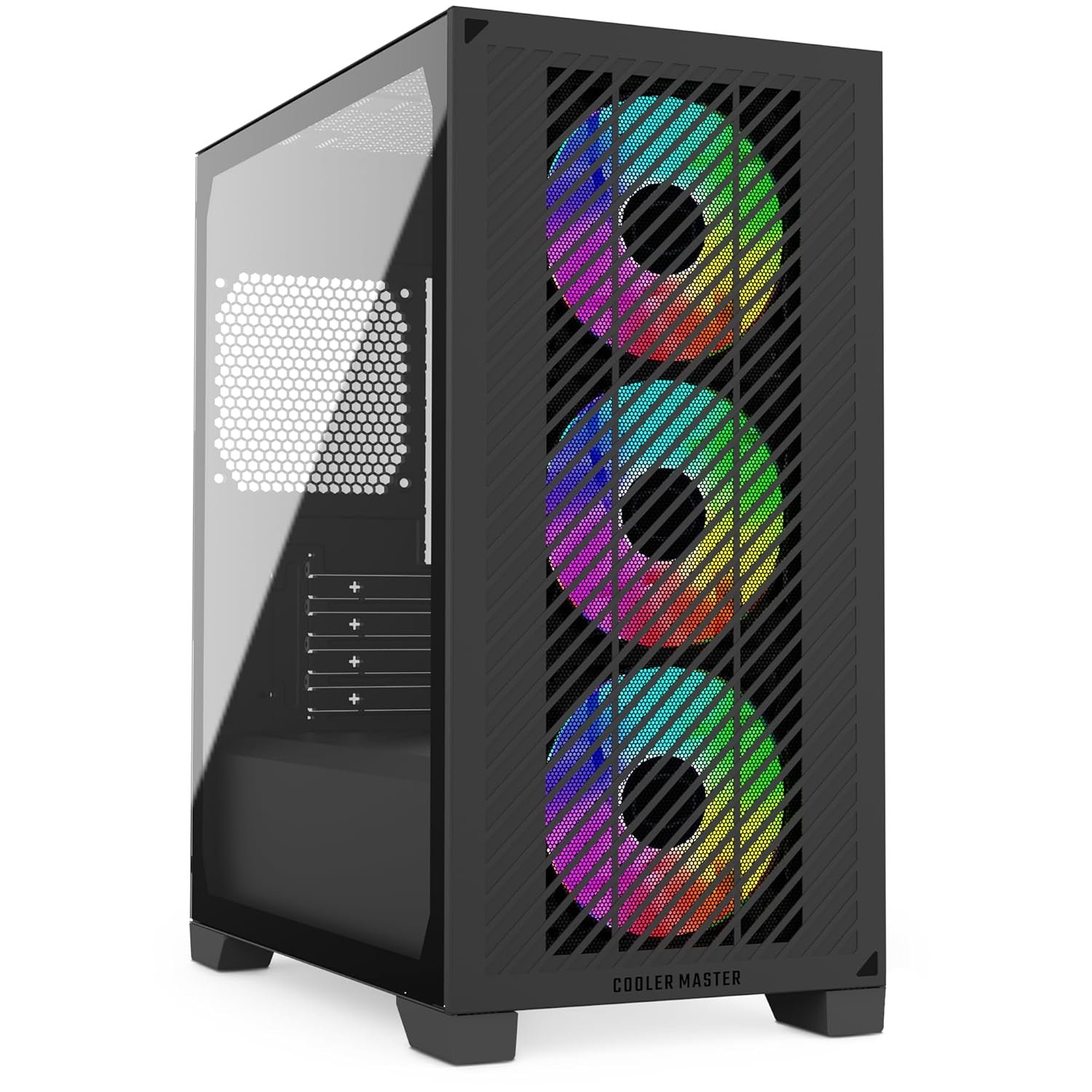

High in value and attention to detail, Cooler Master’s Elite 301 offers users a cost effective, space conscious solution to gaming and computing needs. Elite 301 features a large intake grill and 3x 120mm ARGB fans to ensure a smooth, and efficient running system. The fully black coating and included PSU cover allows for clean builds that are visually appealing as well as functional.

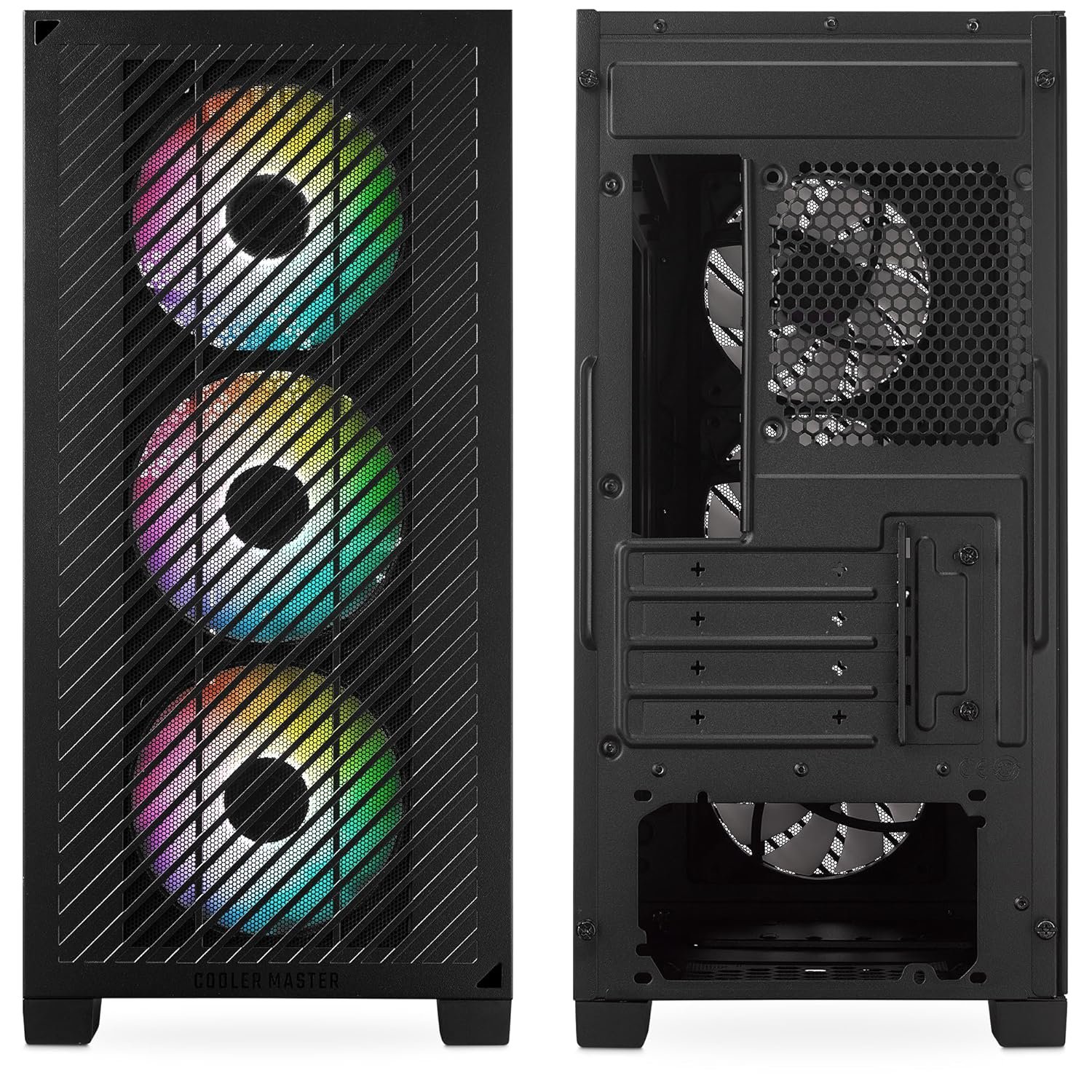

Large Filtered Intakes
The front panel is constructed with a substantially large, unrestricted intake grill to ensure that the system runs cool and efficiently.
Large Support, Minimized Footprint–
Despite its compact size, Elite 301 supports up to 365mm graphics cards, 163.5mm CPU Coolers, providing solid potential for future upgrades.

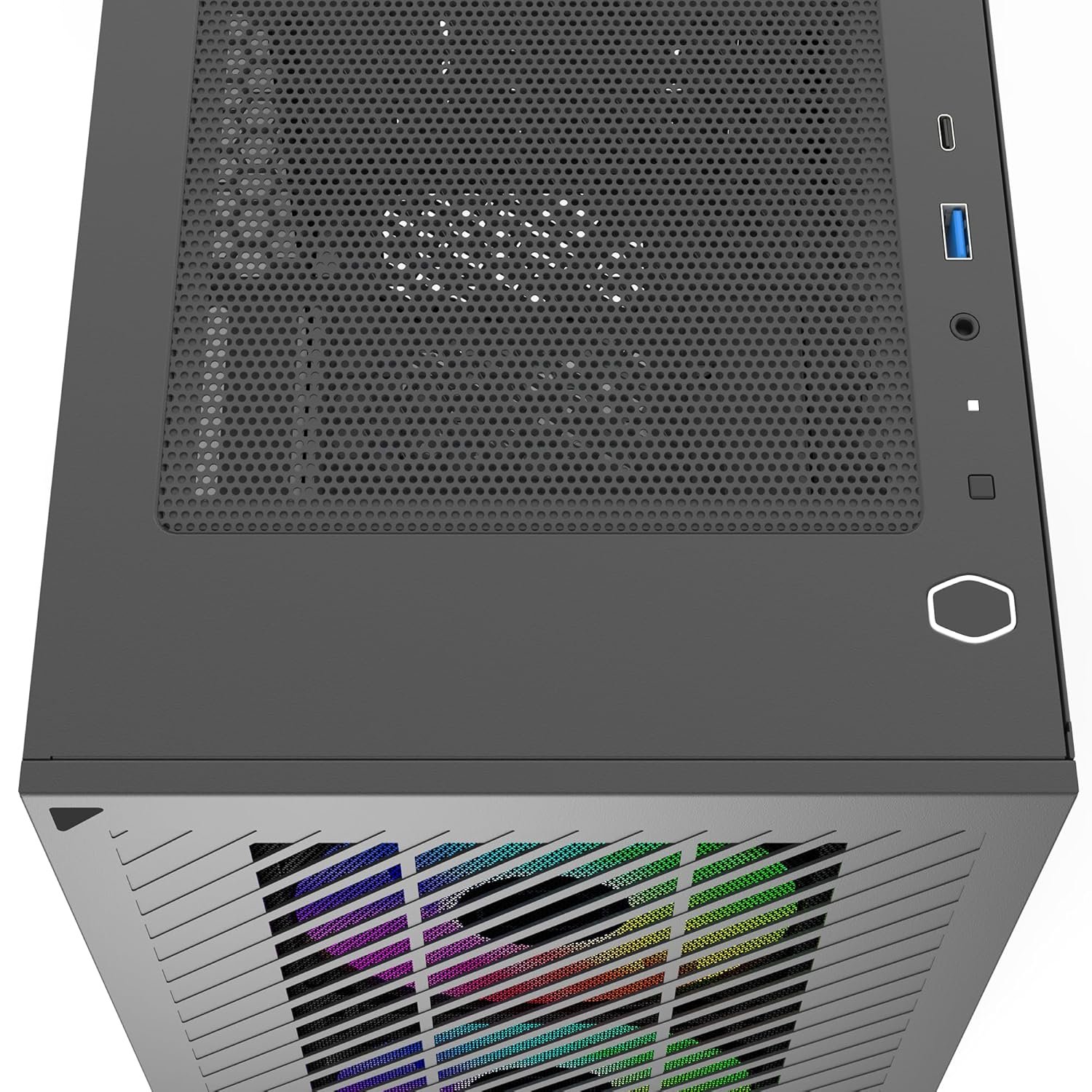

USB Type-C Support
USB Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
